Accessories
We offer genuine & ready-to-fit spare parts and accessories for air pollution control and conveying systems.
- Blowers, Airlocks, & Conveyors
- Built for Harsh Industrial Environments
- Customisable MOC and Configuration
Accessories and Spares Aligned to Your Process
All TNBi accessories and spare parts are designed to work seamlessly with the emission control and powder handling systems. Whether included with the original system or provided later on request, each component is selected for its reliability, fit, and long-term performance.
From rotary airlocks to filter bags, we supply the right parts as per your plant’s needs.
Accessories: Designed to Match Your System Demands

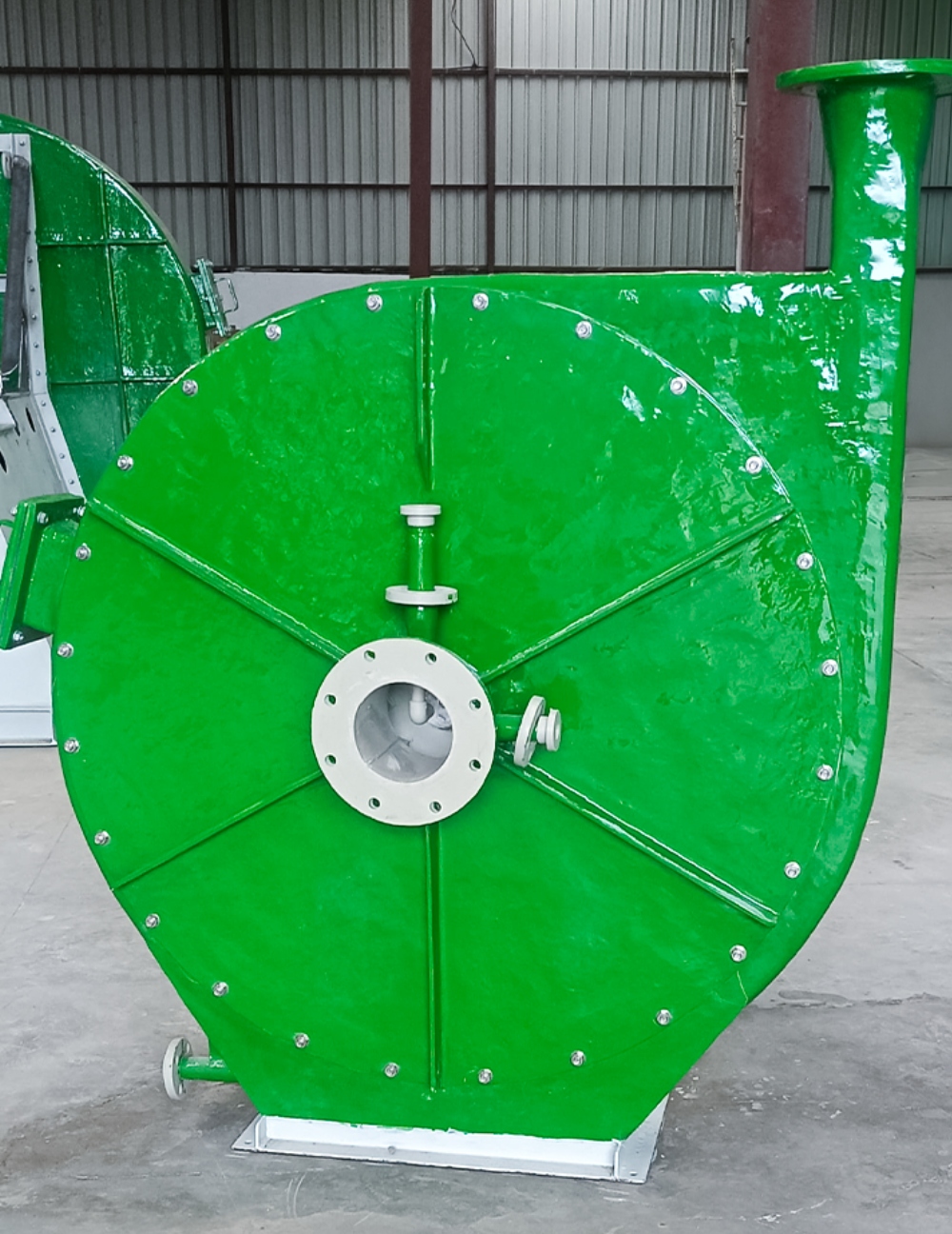

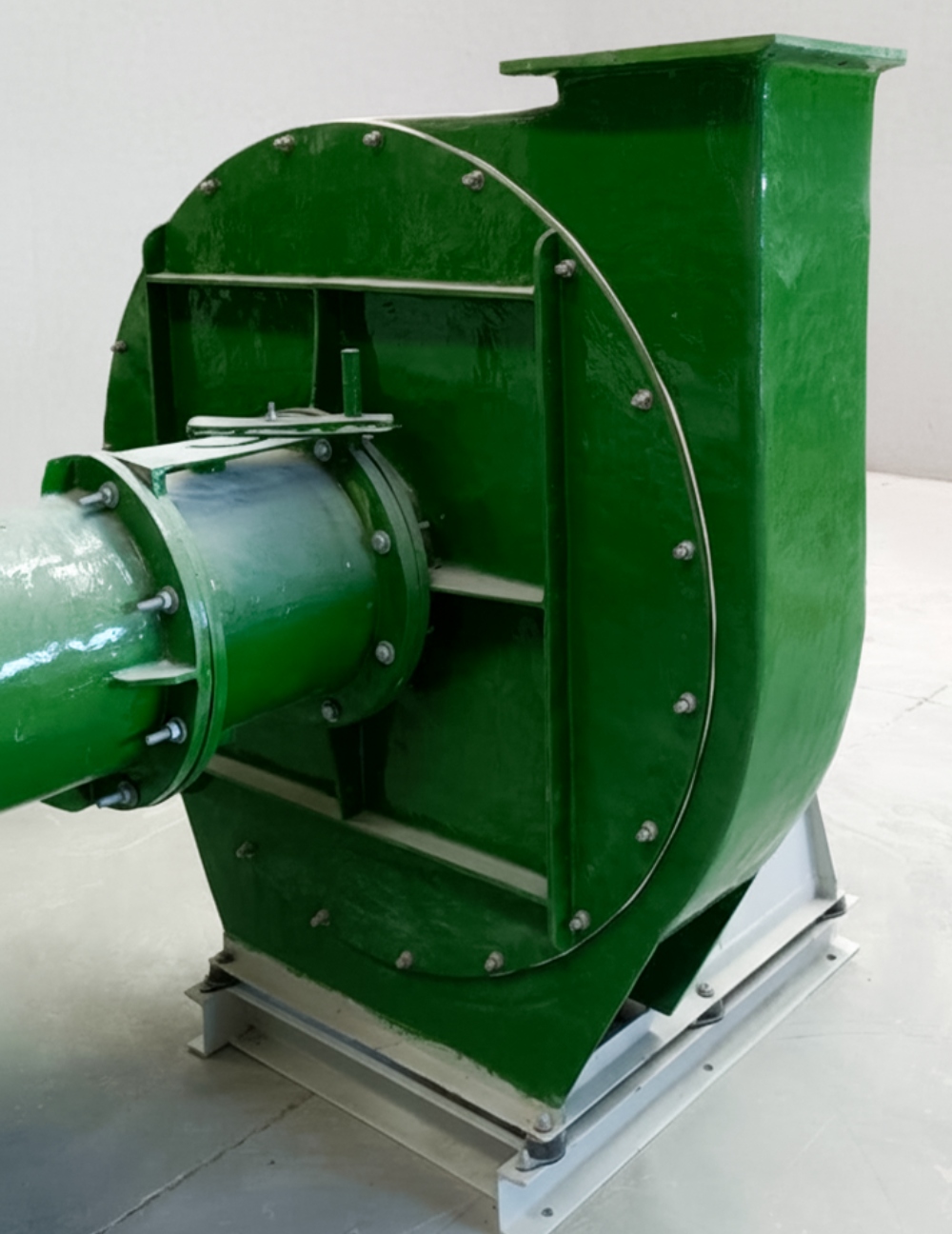

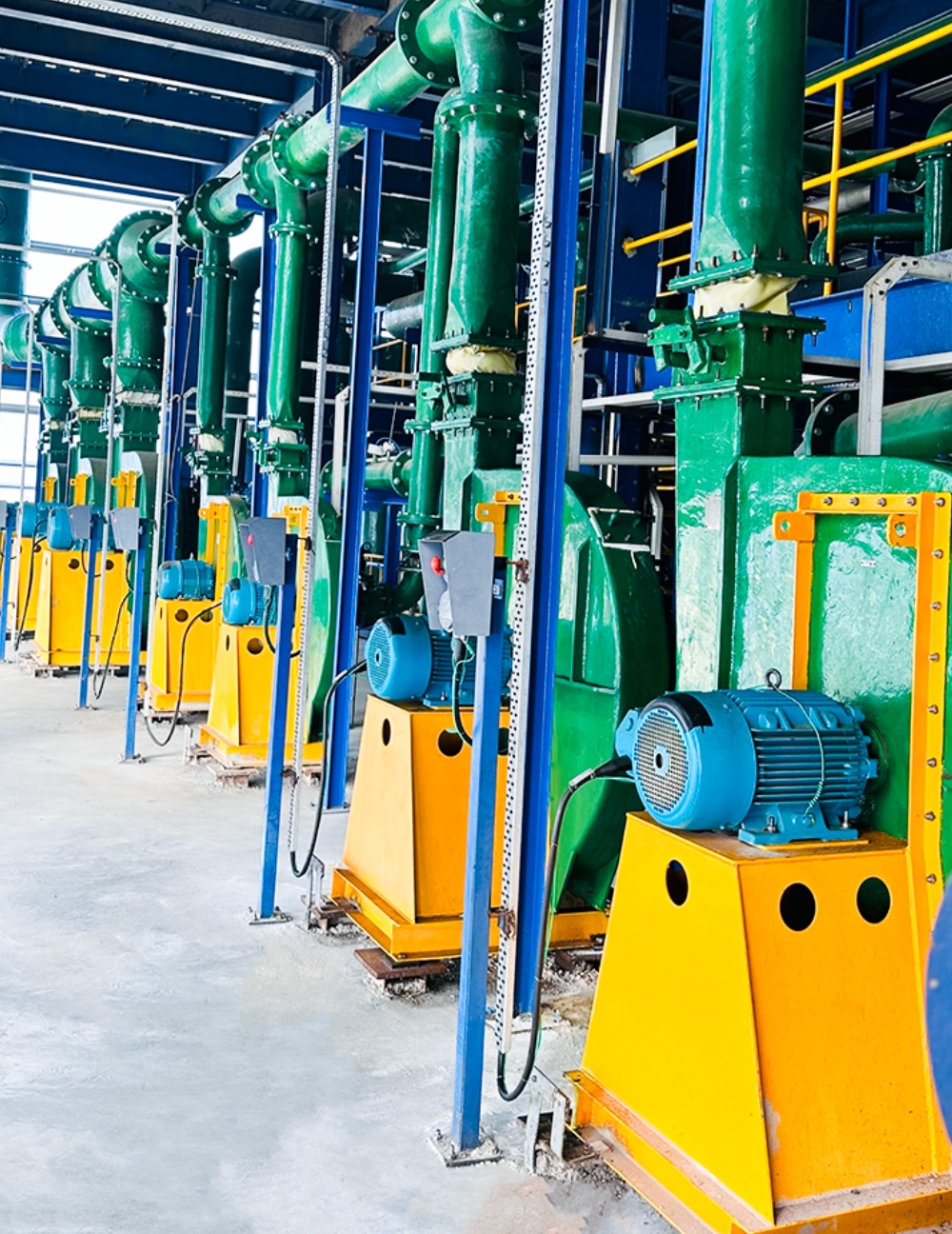

Centrifugal Blower
Types
Induced Draft & Forced Draft
Capacity
500 m³/hr to 3,00,000 m³/hr
Static Pressure
100 mm wg to 1200 mm wg
Drive
Direct Drive or Belt Drive
Features
- Hard chrome ground shafts for superior durability and precision.
- Epoxy resin, PU, and paints ensure corrosion protection in harsh chemical environments.
- Centrifugal fans are designed for high efficiency and low noise. Engineered for reliable, energy-saving fans.
Material of Construction
Metallic, Non-metallic and Carbon Fibre
Application
Air pollution control equipment, exhaust, conveying systems, and Fumes extraction

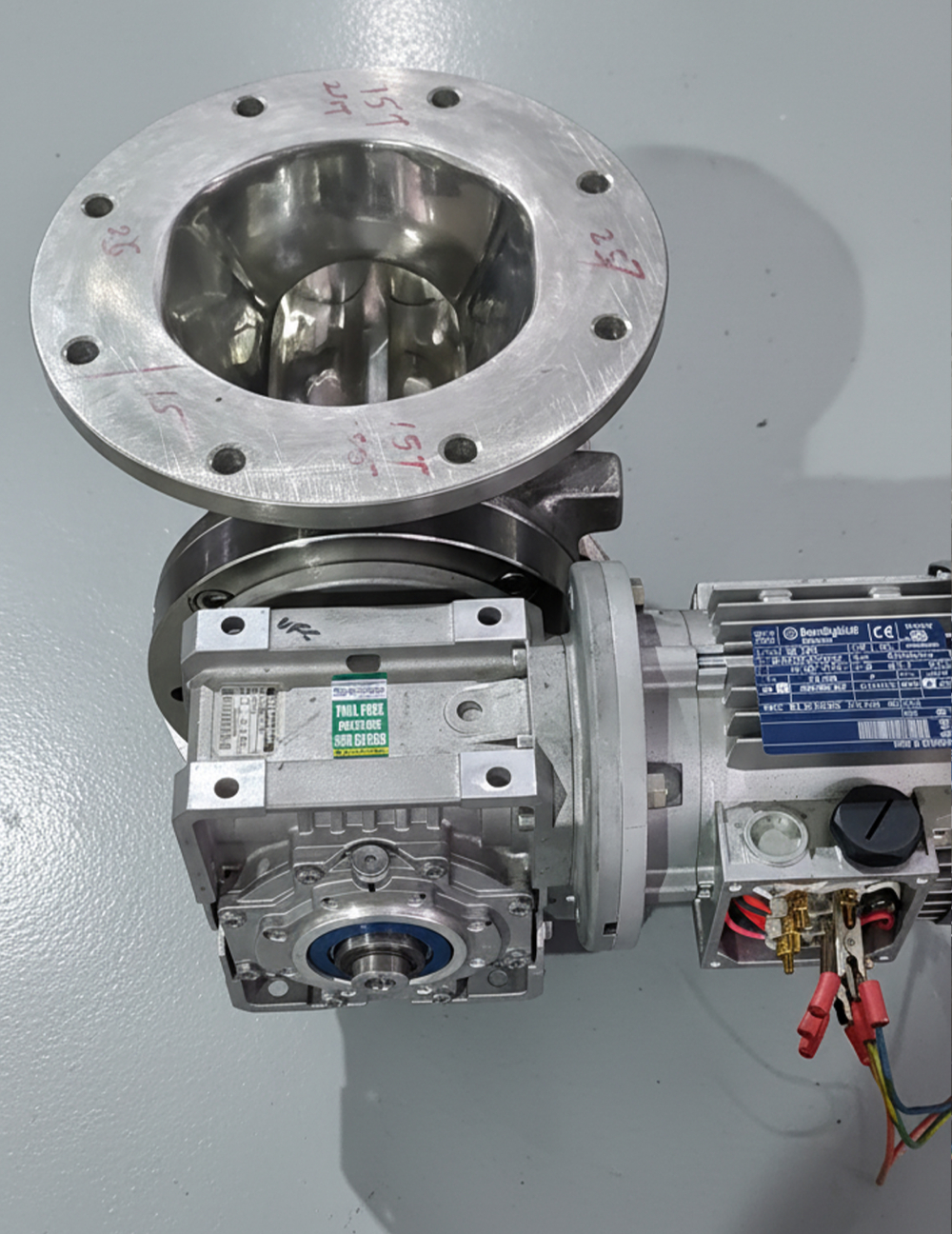

Rotary Airlock Valve
For
Dust discharge and pressure isolation in pneumatic & filtration lines
Types
Drop Through / Blow Through
Sizes
100 mm to 1200 mm
Temperature Range
Up to 700°C
Drive
Direct Drive or Chain Drive
Features
We can offer RAV with close tolerances, a variable tip, sparkproof design, and an online cleaning system. We can offer round or square shapes. 98% sealing efficiency.
Material of Construction
CI, MS, SS 304, SS 316, with optional MOCs like Inconel, Hastelloy,
- Abrasion-resistant lining
- Chrome plating
- Mirror finish
- Hard facing
Application
Dust discharge for bag filter, Cyclone, Classifier, Silo discharge, Hopper discharge, ESP, and Pneumatic conveying feed systems.

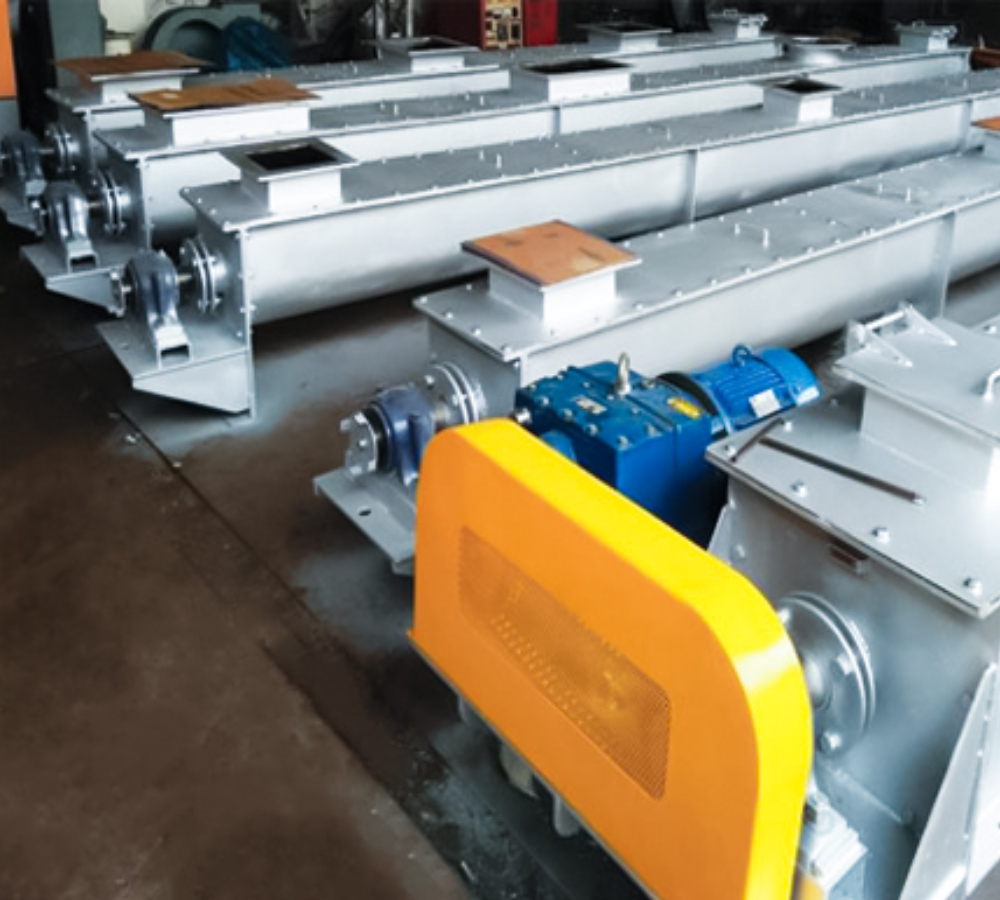

Screw Conveyor
For
Horizontal and inclined dry material conveying
Types
U-type / O-type
Sizes
100 mm to 600 mm
Temperature Range
Up to 500°C
Drive
Direct Drive
Material of Construction
MS, SS 304, SS 316 with optional wear-protection coatings
Spare Parts
Essential Spares for Continuous Operation
Filter Bags
Cartridge
Cages

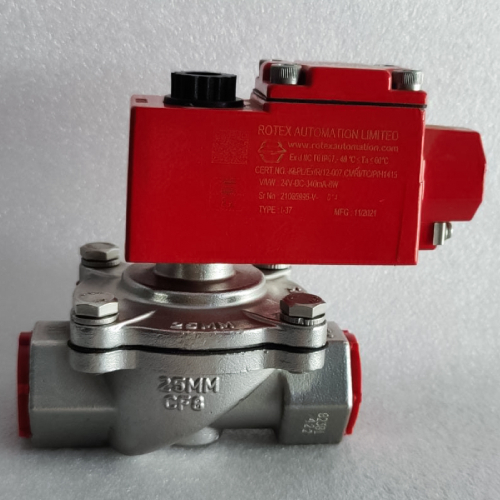

Solenoide Valves

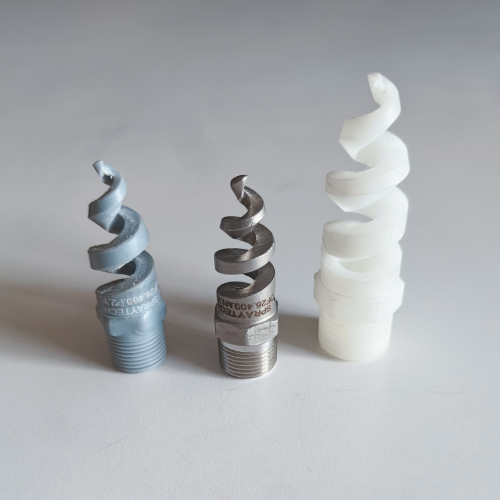

Spray Nozzles

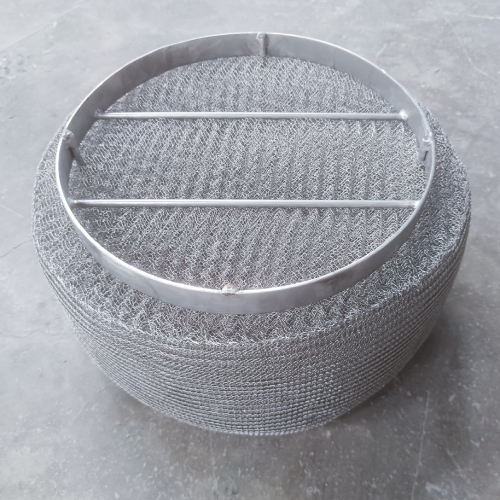

Demiester Pad

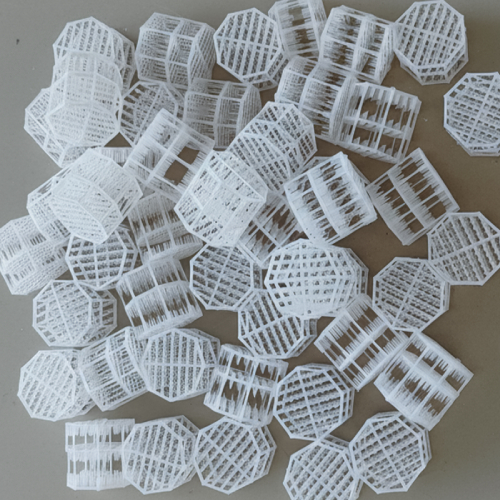

Random Packing
Sequence Controller (Timer)
FAQ's
Frequently Asked Questions
Why is a centrifugal blower used in a dust control system?
Centrifugal blower primarily moves air at high pressure to create suction, for overcoming the pressure drop across given Air pollution control equipment.
What's the difference between a drop-through and a blow-through rotary valve?
Drop-through valves discharge directly from hoppers; blow-through valves are integrated into pneumatic lines to introduce material into the air stream.
TNBi offers both types, engineered to match your conveying system’s flow, pressure, and material handling requirements.
Are TNBi spares compatible with non-TNBi systems?
Yes. TNBi spares, such as timers, bags, cages, and pulse valves, can be matched to most OEM setups. Retrofit kits are also available.
