Classifier for Fine Particle Separation
TNBi’s Classifier designed for Powders classification in the range of 5–300 µm size
- Patented design with No Moving Parts, Minimum maintenance
- Accurate Particle Separation with Secondary Air Fine-Tuning
- Handles 100 Kg/hr to 300 Tons/hr product load
Product Overview
Precise Particle Size Separation

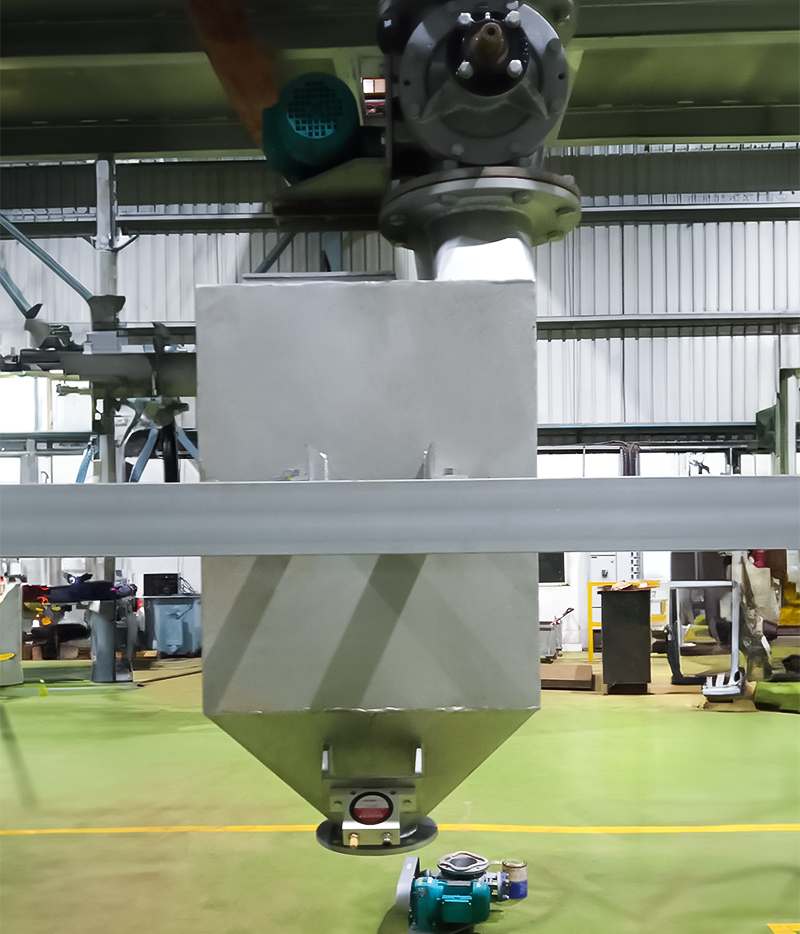

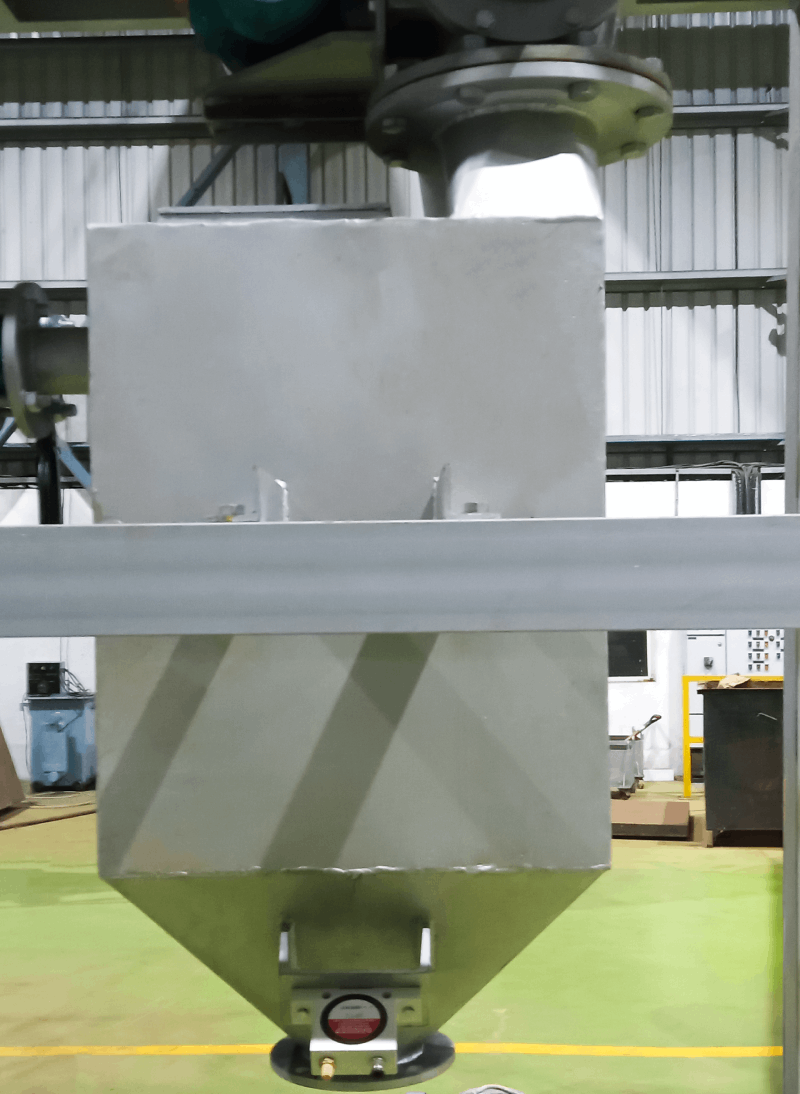

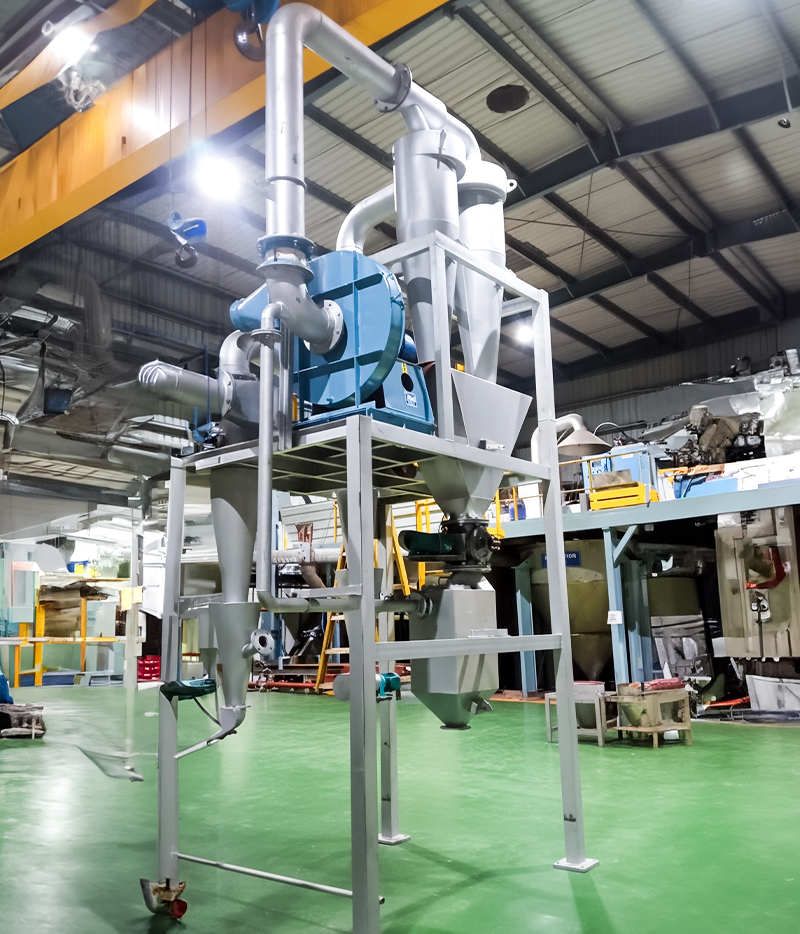

TNBi’s Classifier (with no rotating parts) is a breakthrough solution for powder particle size separation. It utilises aerodynamic force to classify particles ranging from 5 µm to 300 µm, eliminating the risk of mechanical wear, clogging, or frequent maintenance. Designed for a variety of applications. The system delivers consistent particle separation, stable throughput, and very low operating costs.
Product USP
Why TNBi's Classifier Delivers More?
Performance
Separation accuracy from 5 to 300 microns
Handles 100 kg/hr to 300 T/hr throughput
Consistent performance
Design Advantages
No moving parts = Less wear + Less downtime
Fine-tuning is possible using a secondary air stream
Can be connected to a cyclone or bag filter
Multiple stage separation in single stream
Different MOC to suit your application
Cost & Operational Benefits
Low operating and installation cost
Low maintenance
Use Cases
Proven in Powder Processing & High-Dust Environments
Fly Ash Separation
Classifies ultra-fine fly ash with minimal filter choking.
Paint & Pigments
Consistent separation of light, coated, or sticky particles.
Mill Outlet Particle Tuning
Installed downstream of grinders to meet strict product specs.
Plastic Pellets & Metals
Suits dry granule and fine powder applications.
Food & Pharma Powders
Non-contact separation for spices, lactose, and granules.

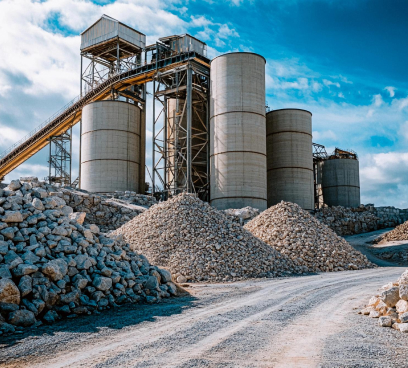

Cement, Granite & Mining
Used for heavy-duty classification with low wear.
Challenges vs TNBi's Solutions
How It Solves the Consistency Issue in Classification?
“Our classifier blades wear out too fast”
No moving parts, zero wear, no replacement parts needed
“Separation drops in humid/rainy weather”
Secondary air fine-tuning maintains cut size even in monsoon
“Too much downtime due to filter choking”
Low-choke design prevents load on bag filters
Case Studies
Proven in the Field
Fly Ash Classification in Beed, Maharashtra
Challenge: Low recovery (40–52%), bag filter clogging, rain-related output drop, and high wear.
TNBi Solution: Two-stage classifier with closed-loop air, bag filter integration, and ultra-fine tuning
Result
- Recovery increased to 55–63%
- Capacity improved ~10%
- No monsoon disruption
- Enabled new product line with <10µm separation
Precision Separation with Fail-Proof Design
Tell us about your material and cut-size requirements. We’ll size and design a classifier for your application.
Industry Application
Used Across Industries for Powder Particle Separation
Power & Energy
Paints & Pigments
Food & Pharma
Cement & Minerals
Chemicals & Fertilizers
Plastics & Polymers
Metals & Mining
Technical Specifications Table |
|
|---|---|
| Parameter | Specification |
| Working Principle | Gas stream + centrifugal separation |
| Cut Size Range | 2 µm to 300 µm |
| Capacity Range | 100 kg/hr to 300 T/hr |
| Output Stream | Coarse discharge + Fine to Cyclone / Bag Filter |
FAQ's
Frequently Asked Questions
What is a classifier without rotating parts, and how does it work?
A classifier without rotating parts separates fine and coarse powder by using aerodynamic modelling instead of mechanical rotors. The airflow naturally creates a motion, generating separation force.
What are the advantages of a classifier without moving parts?
A classifier without moving parts (like TNBi’s classifier) offers Less wear and tear, no spare parts, and minimal maintenance. This makes it ideal for industries handling abrasive, sticky, or combustible powders, thereby reducing downtime, choking issues, and operating costs.
Can a TNBi classifier be integrated into an existing powder processing line?
Yes. TNBi’s classifier is designed for easy in-line installation with mills, grinders, cyclones, or bag filters. It supports both retrofits and new setups, enabling seamless integration into your process flow without major layout changes.
