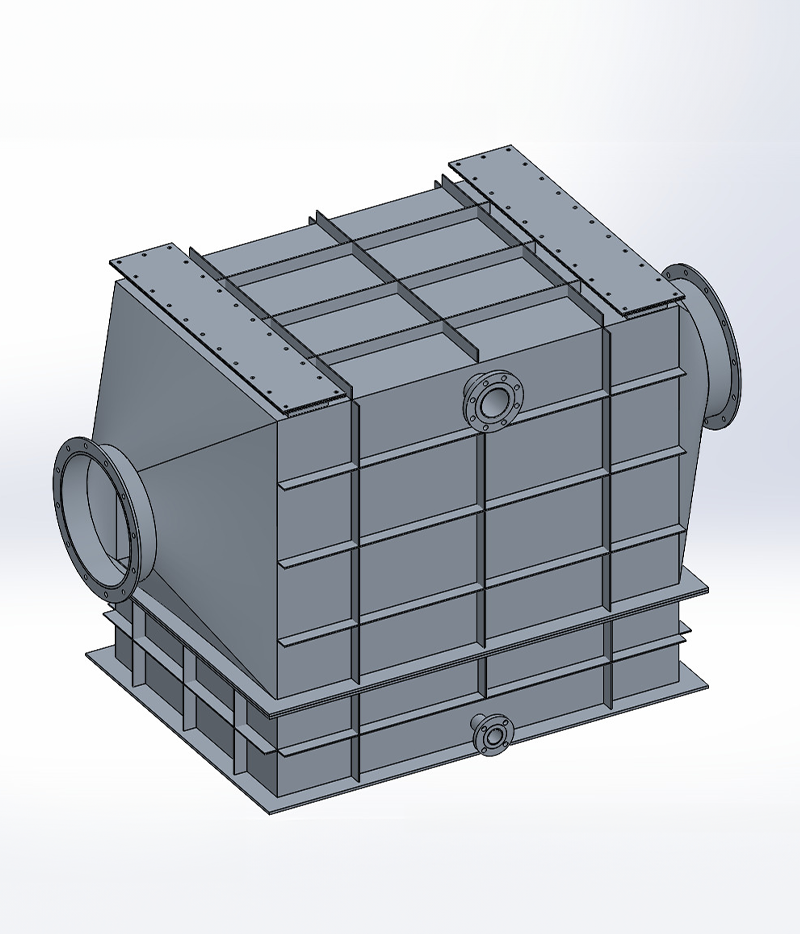

Horizontal Scrubber
- Ideal for Hight constraint locations & Space-Limited Plant Setups
- Efficient Removal of several gases and fumes
- Customisable for dosing skids, blowers, and PLC panels
Product Overview
Built for Performance in Demanding Environments
Product USP
What Makes the TNBi Horizontal Scrubber Stand Out?
Space Efficiency
Horizontal flow system fits low-height spaces
No major support structures needed
Modular Engineering
Pre-integrated with blowers, stacks, and dosing skids if required
Easy to assemble on-site
High-Performance Gas Scrubbing
Excellent removal rates for inorganic acids and fumes
Recirculation-ready for continuous operation
Application-Centric Design
MOC options: FRP, PP, PVC, PVDF, PTFE, ECTFE, PFA, SS304, SS316, Duplex, MS/CS, Hastelloy C-22 and many more based on chemical profile
Available with dosing automation and PLC panel
Installation Layout
Use Cases
Ideal for Mixed Emissions and Extreme Heat
Cement Kilns & Clinker Coolers
Removes dust, SO₂, NOx and acid fumes in one go.
Non-Ferrous Metal Smelting
Handles high-temp gases from aluminium, copper, and zinc processing.
Industrial Waste Incinerators
Captures fine particulate, heavy metals, VOCs, and acidic gases.
Power Plants & Boilers
Controls dust and flue gases from biomass and fossil-fuel combustion.
Chemical Process Exhausts
Multi-stage solution for particulate, acid/base, and solvent emissions.
Multi-Stage Chemical Processing
Supports cascade neutralisation across multi-gas inputs.
Challenges vs TNBi's Solutions
How It Solves Your Top Scrubber Challenges
“Too many pollutants, need multiple systems”
Cyclone + Venturi + Packed Bed + Demister: all in one unit
“Our exhaust is over 900° C”
Withstands ≤ 1100°C inlet temp without needing pre-cooling
“Corrosion, clogging, and noise issues”
Abrasion/corrosion-proof internals + low-noise operation
Case Studies
Proven in the Field
Proven Performance in Pharma
TNBi Solution: Replaced the legacy scrubber with an SS304 Venturi-based unit featuring:
- Horizontal gas entry
- Open recirculation tank
- Adjustable venturi
- Higher liquid flow rate
- Foam-resistant spray system
Result
- Zero shutdowns in 2 years
- ₹1.2Cr saved in maintenance + fines
Tell Us About Your Gas Stream
Industry Application
Used Across Critical Industries
Chemical Processing
Textile & Dyeing Units
Fertilizers & Agrochemicals
Cement Plants
Food & Beverage
Power & Energy
Pharmaceuticals
Petrochemical & Refining
Non-Ferrous Metallurgy
Waste Management
Technical Specifications Table |
|
|---|---|
| Parameter | Specification |
| Gas Flow Capacity | Up to 60,000+ Nm³/hr (based on configuration) |
| Suitable Gas Types | Acidic, Alkaline, VOCs, Mixed |
| Material of Construction | FRP, PP, PVC, SS 316L, Hastelloy C-22 |
| Pressure Drop | 25–45 mbar (stage dependent) |
