Multi-Stage Scrubber
- Treats Multi-Contaminant Streams (Dust + Acidic Gases + Alkaline Gases + VOCs)
- Handles Inlet Temperatures up to 1100°C
- Multiple Stages: Quench + Venturi + Packed Bed
Product Overview
Built to Solve Complex Emission Challenges
Product USP
Why TNBi’s Multi-Stage Scrubber Excels?
Performance
Ideal for Product recovery (Like HCL, HF, NH3 and more)
Efficiency > 99.9% removal across pollutants
Efficient up to 1100°C inlet gas temperature
Modular: Add/remove stages based on emission profile.
Safety & Versatility
Safer operation for Combustible dust / gases and toxic fumes
Built-in mist eliminators and demisters to enhance process
Corrosion-resistant internals, explosion-safe variants available
Design Flexibility
Combines Quench, Venturi, Packed Beds and more
MOC options: FRP, PP, PVC, PVDF, PTFE, ECTFE, PFA, SS304, SS316, Duplex, MS/CS, Hastelloy C-22 and many more based on chemical profile

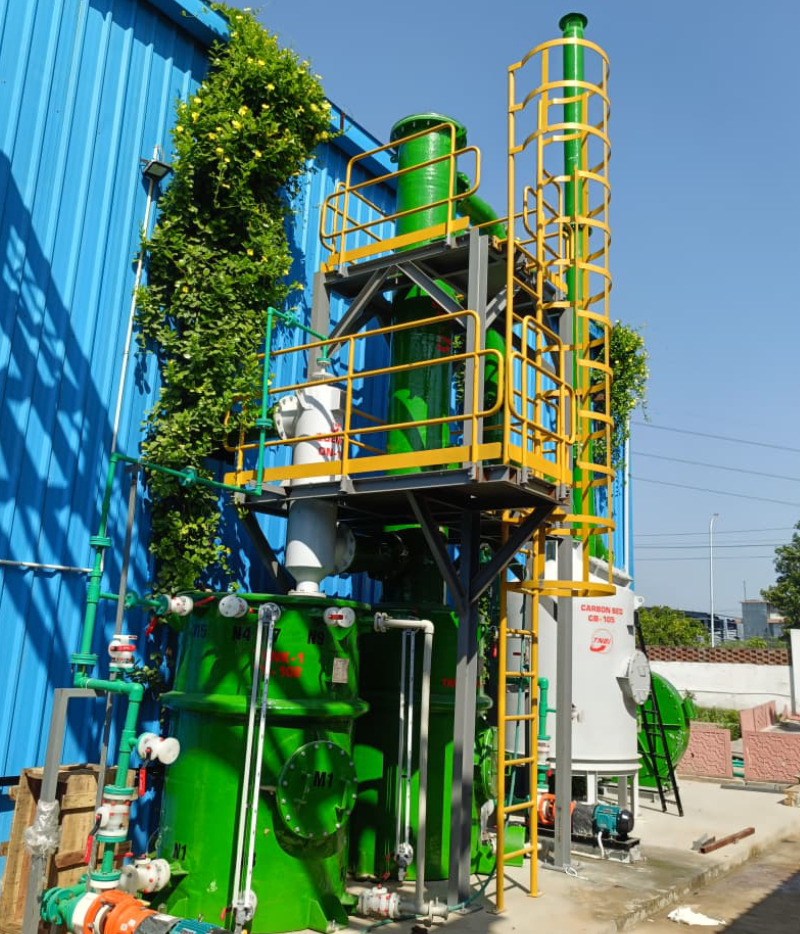

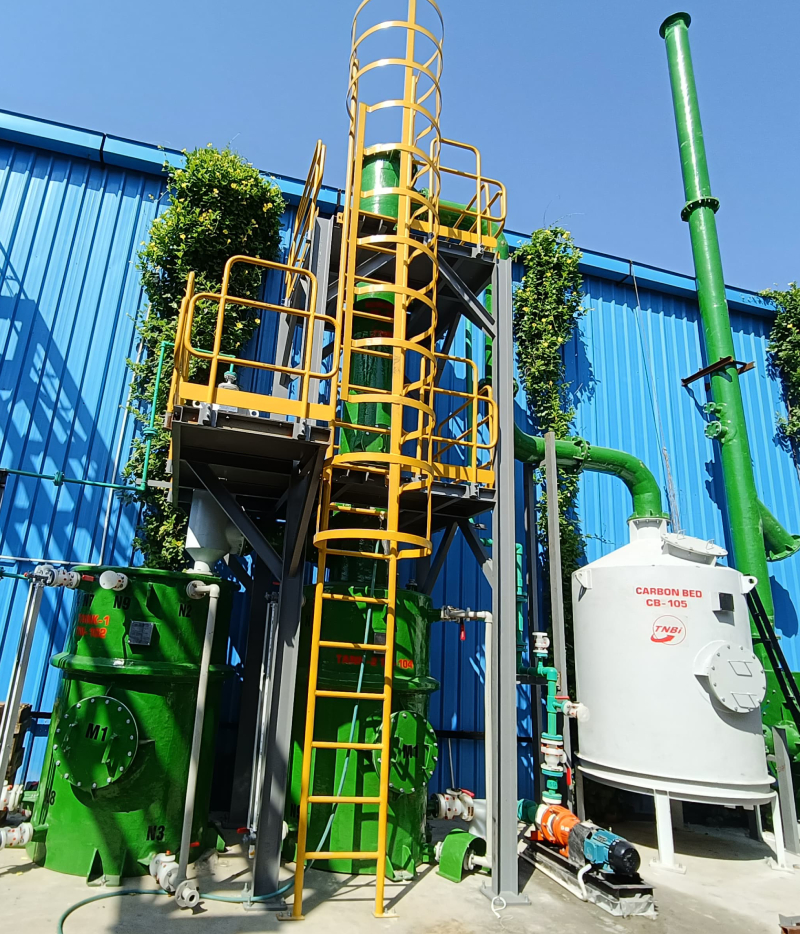

Installation Layout
Use Cases
Ideal for Mixed Emissions and Extreme Heat
Cement Kilns & Clinker Coolers
Removes dust, SO₂, NOx and acid fumes in one go.
Non-Ferrous Metal Smelting
Handles high-temp gases from aluminium, copper, and zinc processing.
Industrial Waste Incinerators
Captures fine particulate, heavy metals, VOCs, and acidic gases.
Power Plants & Boilers
Controls dust and flue gases from biomass and fossil-fuel combustion.
Chemical Process Exhausts
Multi-stage solution for particulate, acid/base, and solvent emissions.
Multi-Stage Chemical Processing
Supports cascade neutralisation across multi-gas inputs.
Challenges vs TNBi's Solutions
How It Solves Your Top Scrubber Challenges
“Too many pollutants, need multiple systems”
Cyclone + Venturi + Packed Bed + Demister: all in one unit
“Our exhaust is over 900° C”
Withstands ≤ 1100°C inlet temp without needing pre-cooling
“Corrosion, clogging, and noise issues”
Abrasion/corrosion-proof internals + low-noise operation
Case Studies
Proven in the Field
Proven Performance in Pharma
TNBi Solution: Replaced the legacy scrubber with an SS304 Venturi-based unit featuring:
- Horizontal gas entry
- Open recirculation tank
- Adjustable venturi
- Higher liquid flow rate
- Foam-resistant spray system
Result
- Zero shutdowns in 2 years
- ₹1.2Cr saved in maintenance + fines
Tell Us About Your Gas Stream
Industry Application
Used Across Industries for Multi-Pollutant Operations
Cement & Minerals
Waste Management
Metallurgy & Smelting
Power Generation
Chemical & Fertiliser Units
Technical Specifications Table |
|
|---|---|
| Parameter | Specification |
| Gas Flow Capacity | Up to 60,000+ Nm³/hr (based on configuration) |
| Suitable Gas Types | Acidic, Alkaline, VOCs, Mixed |
| Material of Construction | FRP, PP, PVC, SS 316L, Hastelloy C-22 |
| Pressure Drop | 25–45 mbar (stage dependent) |
