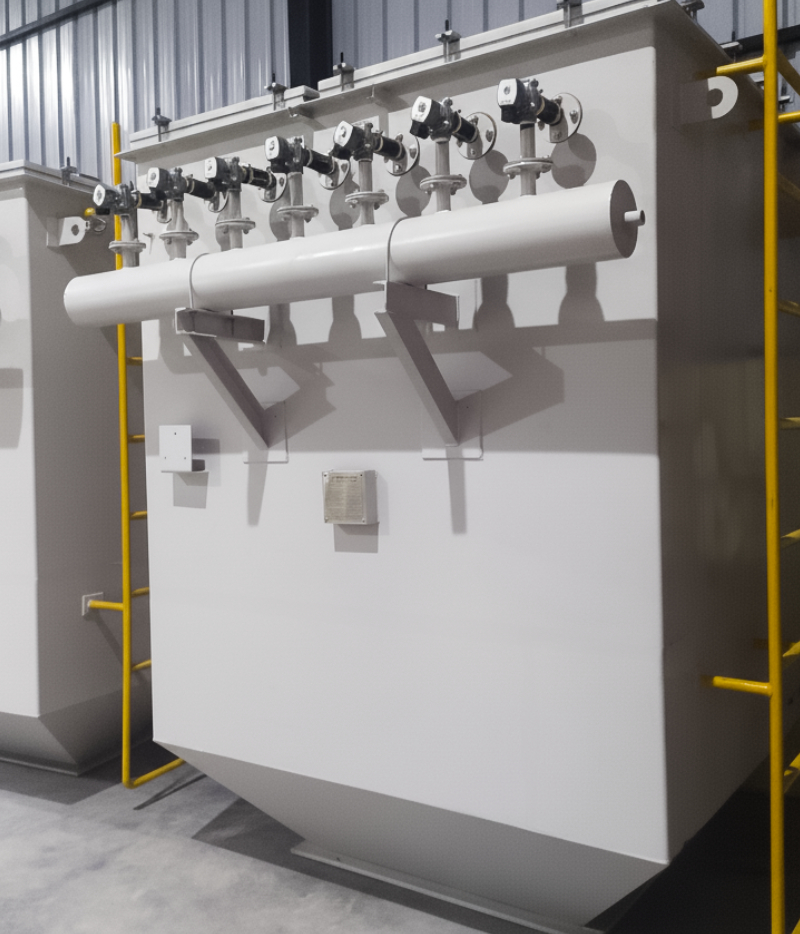

Vent Filter

Filters Dust Or Particles From Air Escaping Through Vents, Usually From Silos, Tanks, Or Vessels
Product Overview

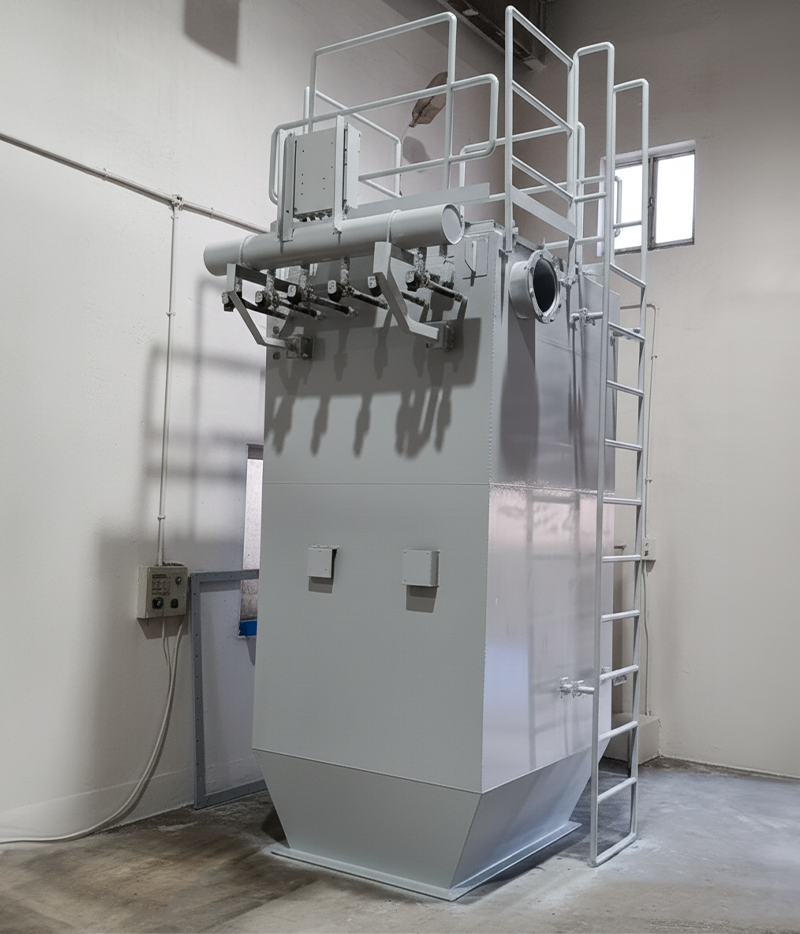

Vent Filter for Silo top

TNBi offers High-efficiency, long-lasting filters with a large surface area compatible with the Customer’s process requirements.
Product USP

What Makes TNBi's Vent Filter Better?

Performance

Designed for High Temp (up to 850°C) & 33 BarG pressure

Compact Design to suit applications

Suitable to handle corrosive environment

MOC options: FRP, PP, PVC, PVDF, PTFE, ECTFE, PFA, SS304, SS316, Duplex, MS/CS, Hastelloy C-22 and many more based on chemical profile

Maximised filter area in compact housing

Works under both vacuum and pressure (up to 33 bar)

Designed for horizontal or vertical layouts based on available space

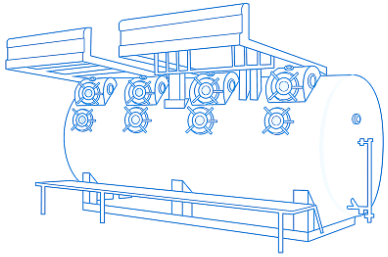

Installation Layout
machine-img
Use Cases

Reliable Filtration Across Dust-Intensive Operations

dot
Grinding & Milling Dust Collection

Efficient dust collection from cement, lime, and mineral mills.

dot
Dry Powder Handling & Conveying

Dust removal in batching, bagging, and pneumatic conveying systems.

dot
Boiler & Furnace Emission Control

Post-combustion particulate capture in power and process plants.

dot
Product Recovery Systems

Capture valuable fine powders in paint, pigment, and pharma industries.

dot
Process Dust Control

From mixing, blending, drying, and material transfer points.

dot
Complement to Cyclone Separators

Used as a secondary filter after TNBi’s Cyclone for finer dust control.

Challenges vs TNBi's Solutions

How Does It Solve Clogging, Downtime, and Dust Escape?

dot
“Too much downtime due to manual dust removal”

Automated pulse jet cleaning for continuous operation

dot
“Space constraints in plant layout”

High filter area in a compact space

dot
“Bag filters choking frequently”

Secondary filtration after TNBi Cyclone reduces choking

Case Studies

Proven in the Field

Bag Filter Retrofit Boosts Mill Efficiency by 50%
Challenge: A A Polymer manufacturing company faced frequent bag choking, high DP, and ID fan noise leading to 6-hour stoppages every 3 days. Their system was working only at 35% of its designed capacity.
TNBi Solution: We replaced their existing bag filter with a custom-designed unit optimised for pressure, airflow, and filter area. TNBi’s bag filter was seamlessly integrated with the existing cyclone and ID fan of the mill.
Result
  • Capacity increased to 75% (50% boost)
  • No choking for over a month
  • Maintenance time was reduced by 85%
  • Stable fan load and quieter operation

Custom-Built Filtration Systems for Your Dust Profile

Let us design a bag filter solution optimised for your flow rate, space constraints, and dust type.
Industry Application

Trusted Across Industrial Sectors to remove Dust from Gas

Technical Specifications Table
Parameter Specification
Filter Media Woven or nonwoven fabrics (as per dust type)
Pressure Range Vacuum to 33 bar
Dust Discharge Options Rotary air lock, knife gate, double flap valve
Output Stream Coarse discharge + Fine to Cyclone / Bag Filter
FAQ's

Frequently Asked Questions

How often should I replace the filter media?
Replacement intervals depend on dust load, operating hours, and cleaning system. With pulse-jet cleaning, the media can last several months.
Vent Filter removes dust particles from air released through vents during material transfer or pneumatic conveying, ensuring cleaner exhaust and environmental compliance.
Yes. Its compact design allows easy integration into new or existing setups.
